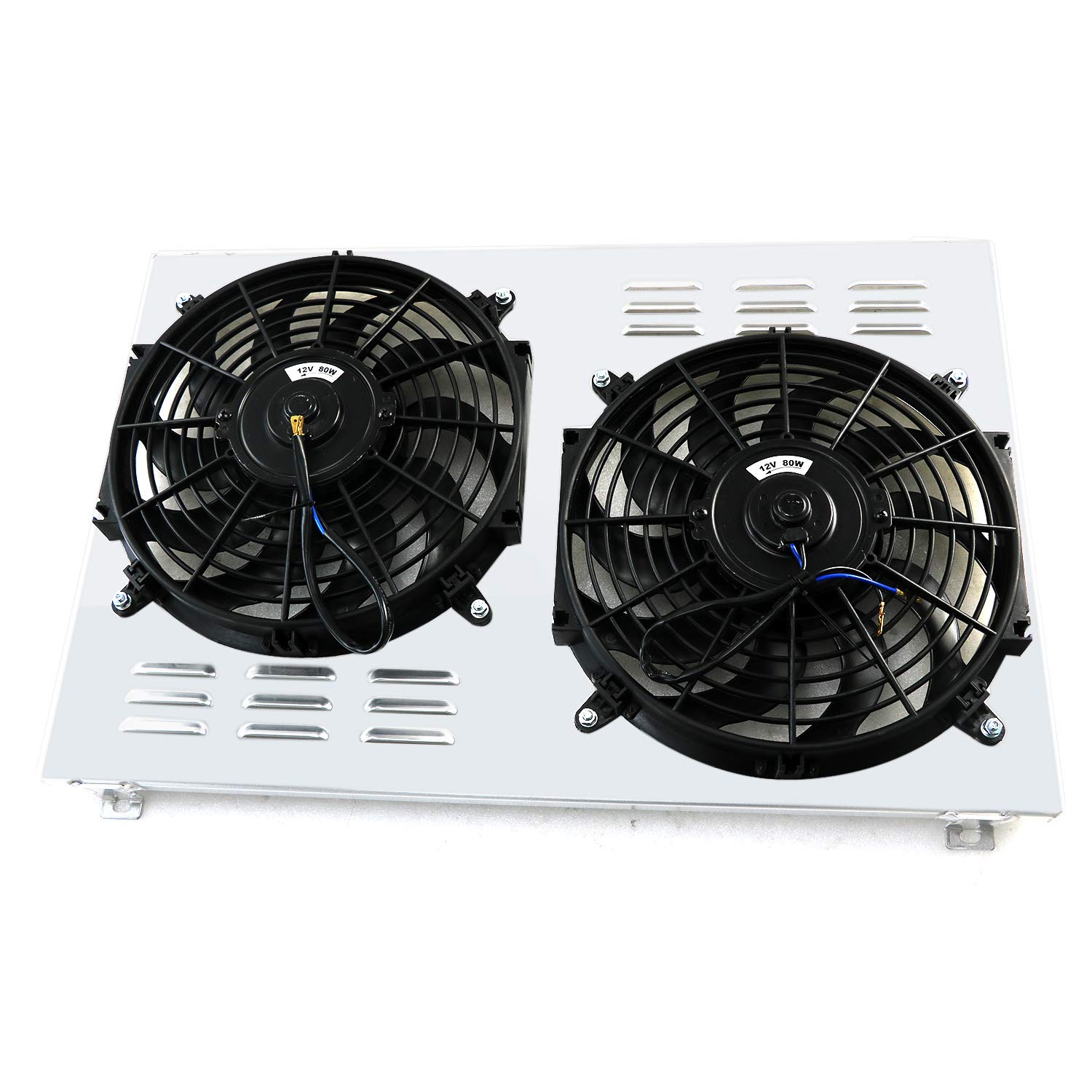

Aluminum Shroud Electric Fan Assembly Compatible with Chevy Camaro 1970-1981/Monte Carlo 78-87 G-Body
Product details
| Management number | 222439664 | Release Date | 2026/05/04 | List Price | $55.60 | Model Number | 222439664 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This Shroud Fan Compatible with: Compatible with 1980 Buick Century 4.3L 4.9L 5.0L Compatible with 1979-1980 Buick Regal 3.8L 4.9L Compatible with 1979 Buick Estate Wagon 5.7L Compatible with 1979-1980 Chevy C10 / C20 /C30 /G10 4.1L 4.8L 5.7L Compatible with 1979 Chevy C10 Suburban / C20 Suburban/ G20 / G30 4.1L 5.0L 5.7L Compatible with 1979 Chevy Camaro /El Camino 3.3L 4.1L 4.4L 5.0L 5.7L Compatible with 1980 Chevy Impala / Monte Carlo /P30 5.0L 5.7L Compatible with 1979-1980 Chevy K10/K20 /K30 4.1L 4.8L 5.7L Compatible with 1979 Chevy K10 Suburban / K20 Suburban 5.0L 5.7L Compatible with 1979-1980 Chevy Malibu 3.3L 3.8L 4.4L 5.0L 5.7L Compatible with 1980 GMC C1500/ G1500 /C1500 Suburban / C2500 /Jimmy/ K1500 Suburban/K2500 Suburban Compatible with 1980 Olds Cutlass/Cutlass Cruiser/ Delta 88 5.0L 4.3L Compatible with 1980 Pontiac Catalina / Grand LeMans/ LeMans Interchange Part Number: 162, CC162, MC162, CU162, DPI162 Other Part Numbers: 1605-370064, 433162,562, 8010162, RA1191, REA41162A, SPTCU162 Fan Details: 12inch Fan Voltage: DC 12 Volts Maximum Fan CFM: 2150 cfm Wattage: 80 Wattage Thickness (in): 2.500 Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included Probe typically threads into radiator, water outlet or manifold
- Shroud Fan Overall Size(inch): 25.6 x 18 x 1.57 / Fan Diameter (inch): 12 / Thickness (inch): 2.5
- The size of radiator which the shroud fan fits: Core Size(inch): 16 6/7 x 26 2/9 / Overall Size(inch): 18 1/2 x 31 5/7
- Aluminum alloy-shroud design with durable, TIG-welded construction
- High Performance Racing Design, Improves Cooling by 30%+ Temp
- Light Weight Direct Bolt-On OEM Fitment or Replacement
| UPC | 731036921877 |
|---|---|
| Model | USAutoPart-1124 |
| Voltage | 12 Volts |
| Wattage | 80 watts |
| Brand Name | KUUHLERSAT |
| Unit Count | 1.0 Count |
| Part Number | USAutoPart-1124 |
| Manufacturer | KUUHLERSAT |
| Material Type | Aluminum |
| Cooling Method | Water |
| Item Type Name | Aluminum Radiator Shroud Electric Fan |
| Number of Items | 1 |
| Air Flow Capacity | 2150 Cubic Feet Per Minute |
| Compatible Devices | 1970-1981 Chevy Camaro, 1978-1987 Monte Carlo G-Body, 1980 Buick Century 4.3L 4.9L 5.0L, 1979-1980 Regal 3.8L 4.9L, 1979 Estate Wagon 5.7L, C10 / C20 /C30 /G10 4.1L 4.8L Suburban Suburban/ G20 G30 5.0L Camaro /El Camino 3.3L 4.4L Impala /P30 K10/K20 /K30 K10 K20 Malibu GMC C1500/ G1500 /C1500 C2500 /Jimmy/ K1500 Suburban/K2500 Suburban, Olds Cutlass/Cutlass Cruiser/ Delta 88 4.3L, Pontiac Catalina Grand LeMans/ LeMans |
| Included Components | 2 X 12inch Fans (Includes mounting kits) |
| Power Connector Type | 3-Pin |
| Warranty Description | 12 Months Warranty |
| Maximum Rotational Speed | 2250 RPM |
| Item Dimensions L x W x H | 25.6"L x 1.57"W x 18"H |
