QSC 5/8 X 3/4-16 Economy 4-Link Rod End Kit with 5/8 Aluminum Cone Spacers & Bungs .250 Wall, Rod End, Heim Joint
Product details
| Management number | 232064546 | Release Date | 2026/06/18 | List Price | $75.92 | Model Number | 232064546 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
QSC 5/8 X 3/4-16 Economy 4-Link Rod End Kit with 5/8 Aluminum Cone Spacers & Bungs .250 Wall, Rod End, Heim Joint
- 4 Right Hand & 4 Left Hand with Bungs & 16 Cone Spacers
- Rod Ends Specs: Body: C1045 Steel Heat Treated, Ball 52100 Bearing Steel Precision Ground Heat Treated, Bore: .625, Ball Width: .750, Thread: 3/4-16, Load Rating: 19,350

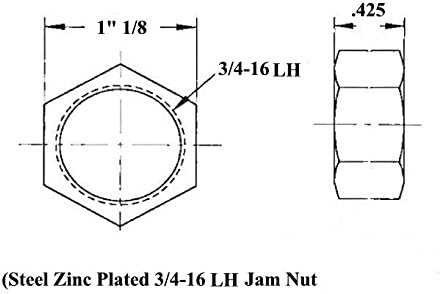

- Jam Nut Specs: Thread: 3/4-16, Width: 1-1/8, Height: 27/64

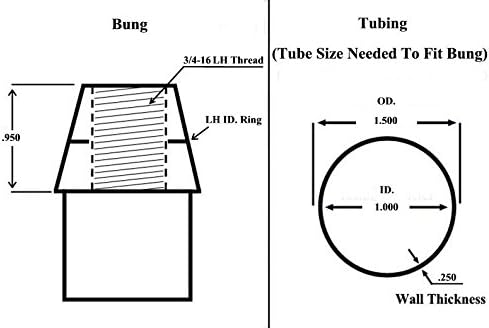

- Bung Specs: 1045 Mild Steel, Thread: 3/4-16, Fits tube Size: 1-1/2" OD X 1.000 ID X .250 Wall
- Cone Spacer Specs: 7075 Aluminum, Black Anodized, Bore: .625, Width: .980, Height: .445, Deg. Angle: 23 Deg.
| ASIN | B0987ZZCG5 |
|---|---|
| Brand Name | QSC |
| Item Weight | 115 Ounces |
| Part Number | 4LINKcm10-12AC/B.250 |
| Bearing Type | Ball Bearing |
| Manufacturer | QSC |
| Material Type | Carbon Steel |
