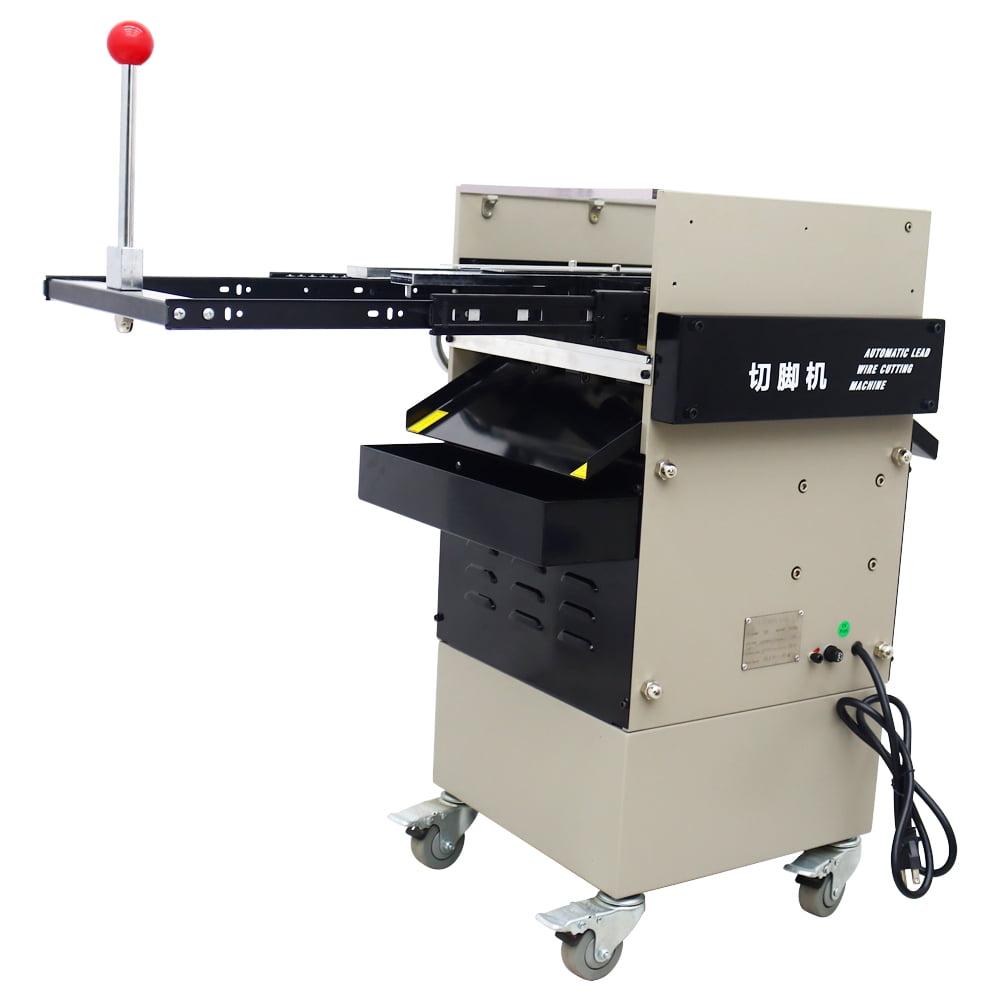

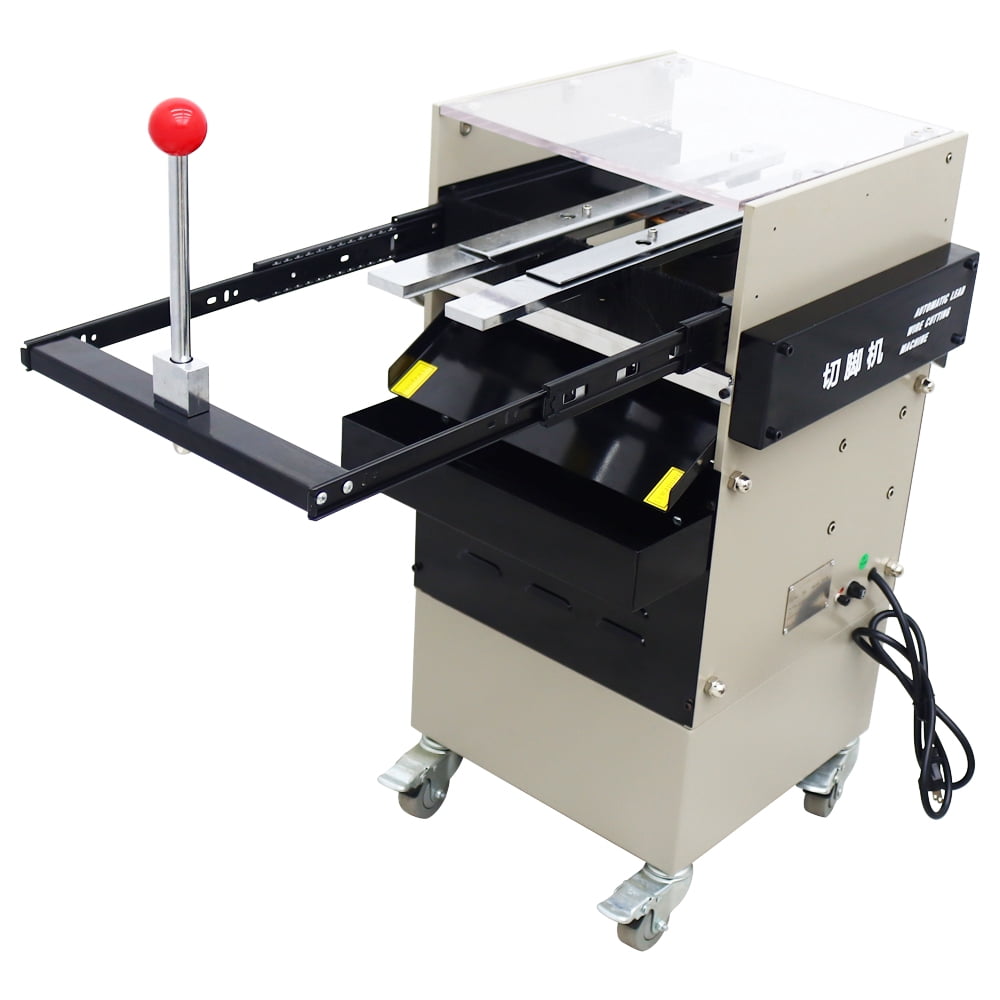

Semi Automatic PCB Foot Cutting Machine Lead Wire Cutter Circuit Board Cut Foot Machine with 7.87 Inch Blade and 0.8-2.5mm Placode Thickness 110V

<p>Description:<br>The breadboard wipe cutting machine is mainly applied in cutting the unwanted pin after the welding of parts of apparatus and this machine is assembled by parts made with exquisite craftwork. The key parts are dealt with grinding , and the imported bearing assembled wipe cutting machine grinding consistency is excellent, the rotating speed of blade is fast and is very efficient and convenient to operate with little noise. The double lead rail is adjusted synchronously , the height of wipe cutting is adjustable and the outlook is attractive.</p> <p>Parameter: <br>Model：250E <br>Power supply: 110V <br>Rated power: 500W <br>Thickness of placode：Approx 0.8-2.5mm(0.03~0.1in) <br>The height of wipe cutting：Approx 1-3mm(0.06~0.12in) <br>Rotating speed of blade：4500r/min <br>Lead rail travel route：0-280mm(0~11.02in) <br>Blade specification：Φ200x70x3.5mm(7.87*2.76*0.14in) <br>Machine size: 665*475*780mm <br>packaging size: 750*610*840mm <br>Net weight: 88kg/194lbs</p> <p>Operations:<br>1. Place the welded breadboard on the adjusted wipe cutting machine and insert the lead rail down the leading-in of lead rail.<br>2.Push dexter feed hand shank and push placode advance at constant speed<br>3.Repeat step 1,2 and finish cutting the welded placode.</p> <p>Notice:<br>When the placode moves avoid moving too fast, and moving too fast can directly shorten the use life of blade and even endanger safety.</p> <p>Maintenance:<br>1.The rotating part needs constant lubrication.<br>2.Clean up the cut pin<br>3.If the transmitting triangle strap is damaged, it needs immediate replacement and the specification is (0-450)<br>4.The blade should not leave cutter head for too long, lubricate the cutter head when necessary if it leaves for several days.</p> <p>Item Include(151026)<br>1.A set of 110V?Semi automatic PCB foot cutting machine<br>2.A set of Blade</p>

• The circuit board wide cutting machine mainly used to cut the extra pin after the components and parts welding, which is assembledby accessories that made in micro technology.
• The three hole blade gland adopts the triangle positioning principle, and the blade is firmly fixed and not easy to loosen. Under high-speed conditions, the blades do not slip, operate stably and chamfer accurately.
• Blade speed is fast, the jitter is small and the pin is cut smoothl. Blades turning speed is 4500r/min. The key parts are grinded, the imported bearings are assembled, and the chamfering consistency is good.

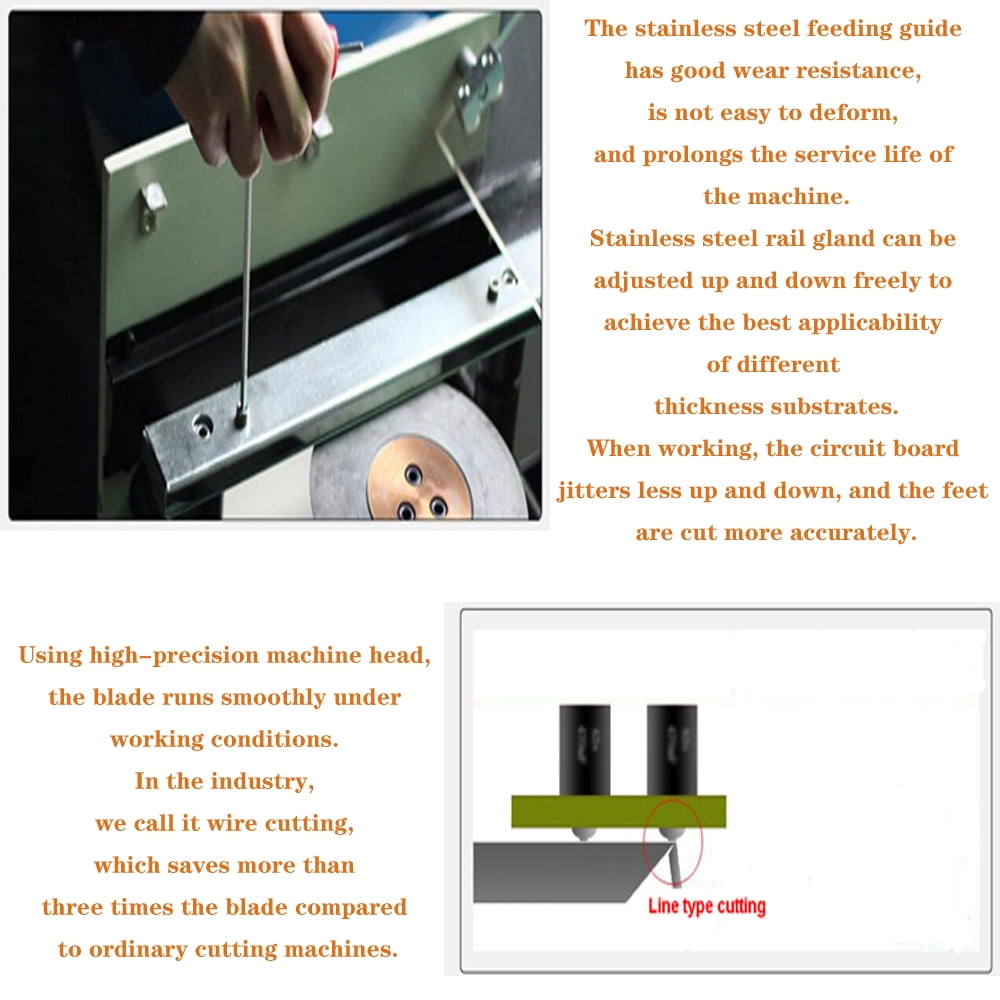

• The feeding guide rail of the fine steel is of high thickness, wear resistance, not easy to deform and prolong the service life of the machine.
• The stainless steel guide rail gland can be adjusted up and down freely, which has reached the best applicability of substrates with different thicknesses.
